Welcome to the course!
Please read the instruction guide then, proceed with the learning materials and assignments. Each section below has tabs. For example- Instruction guide has “Course objective” and “Course content”. Click on the tabs to see the details of the respective tab. Active tabs will appear in green color.
Instruction guide
The objective of the course is to build capability to use 3D-modelling in mechanical engineering and in production of 2D-drawing documents about parts and assemblies. After the completion of the course, student will have basic know- how about using of 3D- cad software (SolidWorks).
Prerequisite competence: Technical drawing or 2D-CAD. Additionally, you need SolidWorks software for this course.
Students will be introduced to the basic tools and methods of 3D modelling. These include sketching, extrusion, cutting with material removal methods, feature multiplication, revolving, filleting, sweeping and various dimensioning methods. The course includes learning material and assignments.
Learning Materials
Please go through the attached file to get started with the course.
In this section you will find 8 videos below:
Video 1: How to Use Solid Works
https://oysamk.sharepoint.com/:v:/s/SAMKvideoportaali/EcQz9330Iq1MiwLEDHAWQWoBgMOR1_jKEQcm93zxJ06i8A
Video 2: The first 3D-Model
https://oysamk.sharepoint.com/:v:/s/SAMKvideoportaali/EY2OojzT6wtLnsx5DJ3tSvUBy8afCzIA3l2LgQ9zVpR9Pg
Video 3: New tools (linear pattern, chamfer, fillet)
https://oysamk.sharepoint.com/:v:/s/SAMKvideoportaali/Ee8yHLAX1vlJi3M47Ldh_ooBShux_iOTlL5-GJHHESTADg
Video 4: New tools (circular pattern, create new plane)
https://oysamk.sharepoint.com/:v:/s/SAMKvideoportaali/EQ6eEitGUe5Dij-RYfTSQIAB1phnKotHzvblPHTvnaaH9Q
Video 5: New tools (mirroring, revolved boss-base)
https://oysamk.sharepoint.com/:v:/s/SAMKvideoportaali/EWVwaxzJPB5CtOEs3tdTKO8BT1YCtSBTMVcoM-07PRf41g
Video 6: How to add text to model
https://oysamk.sharepoint.com/:v:/s/SAMKvideoportaali/EXRDGn-PhutPqYaeg7kHk4gBJeIa2t8VpA-YxRCa4ZsLyw
Video 7: Assembly
https://oysamk.sharepoint.com/:v:/s/SAMKvideoportaali/EZ3xrGt91wZBgrhQVAi0CWUBGfZCUE8hmPs_97Qcg9qt5g
Video 8: Drawing
https://oysamk.sharepoint.com/:v:/s/SAMKvideoportaali/EbuvmbwRc89EvGB_i-Zi1VcBb55FbaUaWEzXeou02qb1-w
Lore
Assignments
The 1st assignment attached below:
The 2nd assignment attached below:
The 3rd assignment attached below:

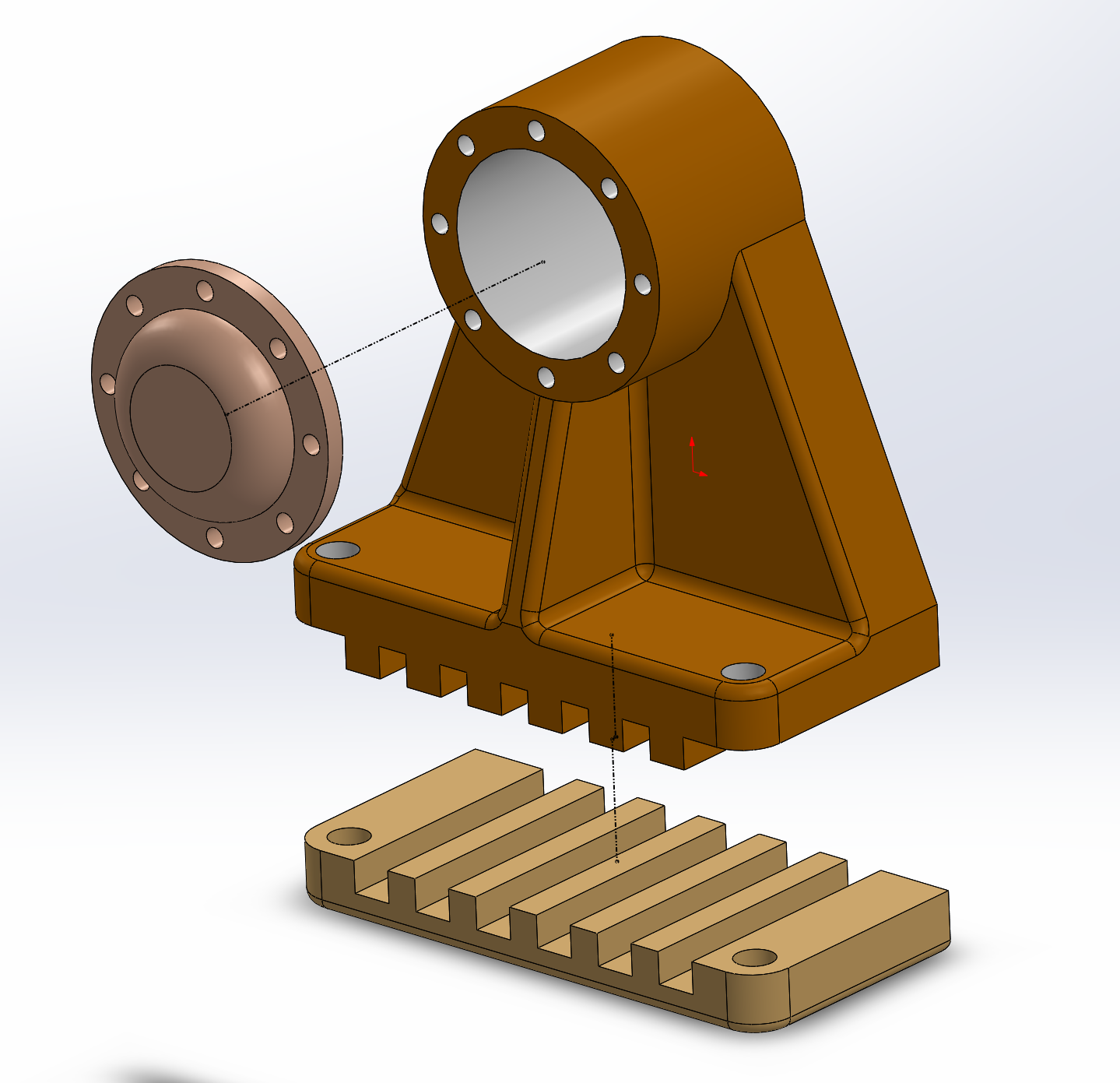

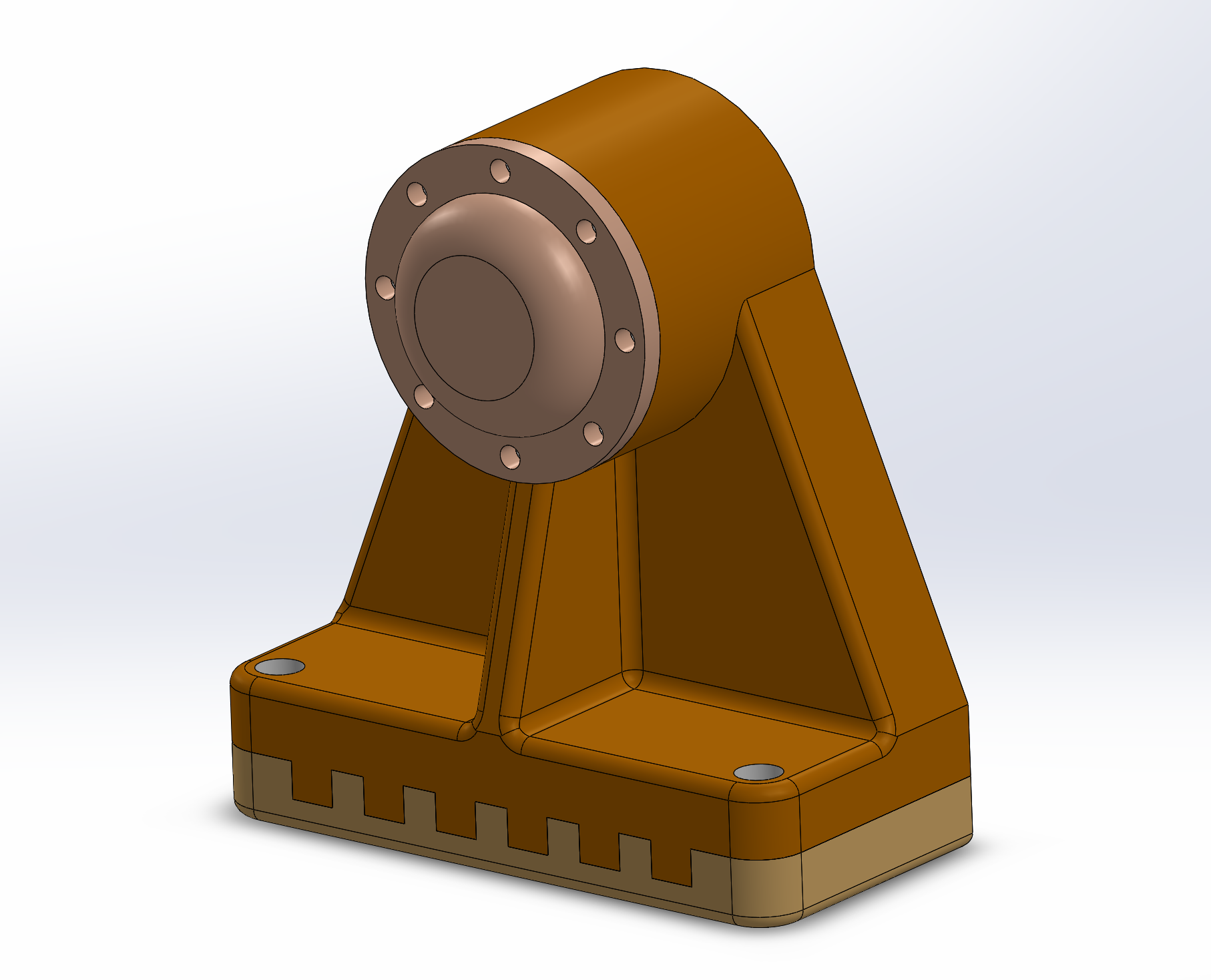

4th assignment along with materials attached below:
THANK YOU FOR JOINING THE COURSE!
If you would like to contact the course teacher, please visit “ABOUT” section.
